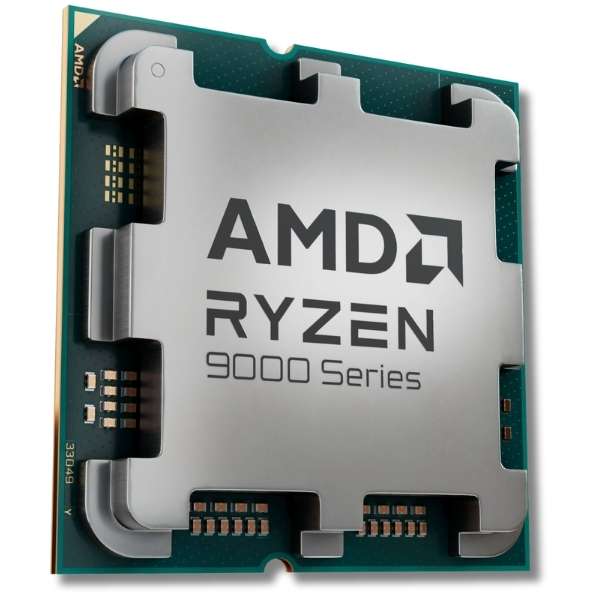

AMD Ryzen 9 9900X Processor with Radeon Graphics

42499.00 45000.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

AMD Ryzen 9 9900X – Ryzen 9 9000 Series Granite Ridge (Zen 5) 12-Core 4.4 GHz – Socket AM5 120W – Radeon Graphics Processor – (100-100000662WOF)

This processor has a 120W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.

AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Specifications:

Model Name	AMD Ryzen 9 9900X
Part no.	100-100000662WOF
Family	Ryzen
Series	Ryzen 9000 Series
Form Factor	Desktops , Boxed Processor
Market Segment	Enthusiast Desktop
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Former Codename	Granite Ridge AM5
Architecture	Zen 5
# of CPU Cores	12
Multithreading (SMT)	Yes
# of Threads	24
Max. Boost Clock	Up to 5.6 GHz
Base Clock	4.4 GHz
L1 Cache	960 KB
L2 Cache	12 MB
L3 Cache	64 MB
Default TDP	120W
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	3
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryze Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)	Not Included
Recommended Cooler	Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)	95°C
OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 2.0 (480Mbps) Ports	1
PCI Express Version	PCIe 5.0
Native PCIe Lanes (Total/Usable)	28 , 24
Additional Usable PCIe Lanes from Motherboard	X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	192 GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600
ECC Support	Yes
Graphics Capabilities
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C DisplayPort Alternate Mode	Yes
Product ID Boxed	100-100000662WOF
Product ID Tray	100-000000662
Key Features
Supported Technologies	AMD EXPO Technology , AMD Ryzen Technologies
Warranty	3 Years
Note	Features, Price, Specifications are subject to change without notice. Images used for Representation purposes only
