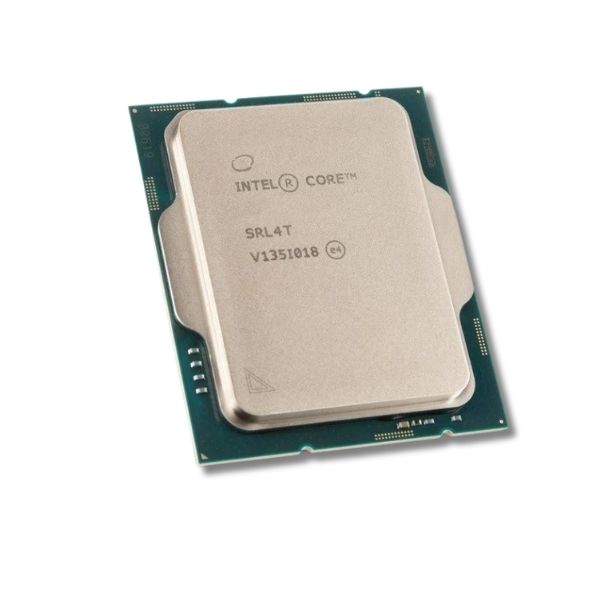

Intel® Core™ i7-14700 – Ultimate Performance for High-End Computing Desktop Processor (BX8071514700)
The Intel® Core™ i7-14700 is designed to meet the demands of high-performance desktop systems and workstations. Featuring 20 cores (8 Performance-cores and 12 Efficient-cores) and 28 threads, this processor excels at multitasking, content creation, and intensive workloads, providing a seamless experience for both professional and personal use.
Boosted Speeds and Enhanced Power
With a maximum turbo frequency of 5.4 GHz, the i7-14700 delivers lightning-fast processing speeds for gaming, video editing, and simulations. The 33MB Intel® Smart Cache and 28MB L2 Cache ensure superior responsiveness, while the 65W base power and 219W maximum turbo power allow for efficient performance even during heavy use.
Advanced Memory and Graphics Support
Supporting up to 192GB of DDR5 RAM at 5600 MT/s and DDR4 RAM at 3200 MT/s, the i7-14700 ensures fast memory performance and high bandwidth (89.6 GB/s). Paired with Intel® UHD Graphics 770, users can enjoy rich graphics performance, supporting up to 4 displays with 4K resolution via HDMI and 8K resolution via DP.
Robust Security and Reliability
Equipped with Intel® Threat Detection Technology, AES New Instructions, and Secure Boot for advanced security features, the i7-14700 is perfect for both work and play. It is backed by a 3-year warranty for reliable, long-lasting performance.
Specification:
| Model | i7-14700 |
| Product Collection | Intel® Core™ i7 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.4 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Cache | 33 MB Intel® Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| GPU Specifications | |
| GPU Name‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 GHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Similar
Products
Related Products
AMD Ryzen 7 5700 Processor
12490.00
13790.00
Intel Core I9-14900K Processor
46990.00
82350.00
AMD Ryzen 5 7600 Processor with Radeon Graphics
18990.00
20000.00
AMD Ryzen 5 5500GT
11620.00
12500.00
AMD Ryzen 5 9600X Processor with Radeon Graphics
22790.00
30000.00
Intel Core i7-12700 Processor
24800.00
Intel Core Ultra 7 265K Processor
35500.00
41900.00
Intel Core i7-14700F Processor
28990.00
34999.00
Intel Core I5-12400F Processor
10290.00
13500.00
Intel Core i7-12700F Processor
22990.00
26000.00
Redragon M601 Centrophorus RGB Wired Mouse (Black)
899.00
1290.00
Z890 A ELITE WIFI7
27800.00
53000.00
Galax RTX 3050 EX (1-Click OC) 6GB Graphics Card
18790.00
20000.00

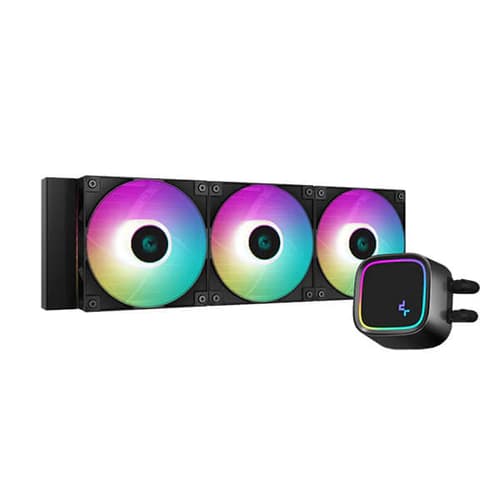

Deepcool Gammaxx LE720 ARGB CPU Liquid Cooler (Black)
