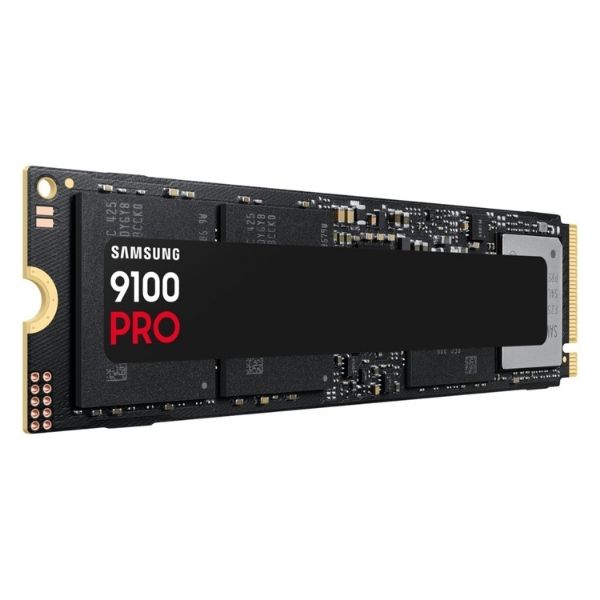

Samsung 9100 Pro 2TB M.2 NVMe SSD is a next-generation PCIe Gen5 storage solution, purpose-built for extreme gaming, AI workloads, and high-performance creative tasks. Delivering sequential read speeds up to 14,700 MB/s and write speeds up to 13,400 MB/s, it’s over twice as fast as the previous flagship. With random IOPS up to 1,850K/2,600K, advanced power efficiency, robust thermal management, and full Samsung Magician software support, it sets a new benchmark for premium SSDs.
Key Features
-
PCIe 5.0 x4 interface: up to 14,700 MB/s read, 13,400 MB/s write speeds
-
Massive random performance: up to 1,850,000/2,600,000 IOPS (read/write)
-
Advanced 5nm controller for 49?tter power efficiency
-
2GB LPDDR4X DRAM cache and Samsung V-NAND TLC for reliability
-
AES 256-bit encryption, TCG Opal, TRIM, S.M.A.R.T, and Samsung Magician software
Product Specification Table
| Specification | Details |
|---|---|
| Model | Samsung 9100 Pro 2TB (MZ-VAP2T0BW) |
| Capacity | 2TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 5.0 x4, NVMe 2.0 |
| NAND | Samsung V-NAND TLC |
| Controller | Samsung In-house 5nm |
| DRAM Cache | 2GB LPDDR4X |
| Sequential Read | Up to 14,700 MB/s |
| Sequential Write | Up to 13,400 MB/s |
| Random Read (4K, QD32) | Up to 1,850,000 IOPS |
| Random Write (4K, QD32) | Up to 2,600,000 IOPS |
| Power Consumption (Active) | Read: 8.1W / Write: 7.9W |
| Endurance (TBW) | 1,200TB |
| MTBF | 1.5 million hours |
| Operating Temp | 0–70°C |
| Security | AES 256-bit, TCG Opal, S.M.A.R.T, TRIM |
| Weight | 9g |
| Max Operating Shock | 1500G |
| Software | Samsung Magician |
| Warranty | 5 years or 1,200TBW |
| Note | Prices, features and specifications are subject to change without notice. Images are for Representation purposes only |
