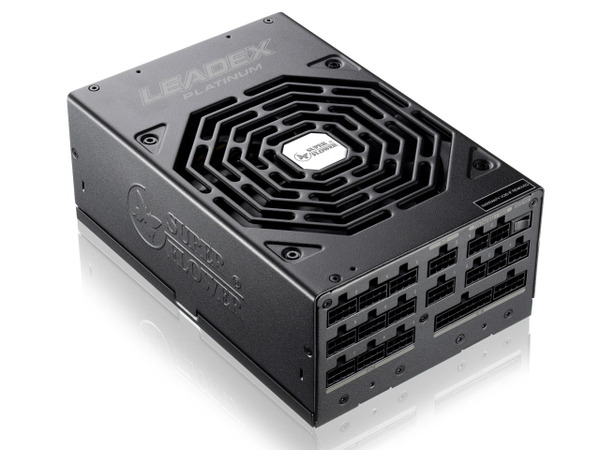

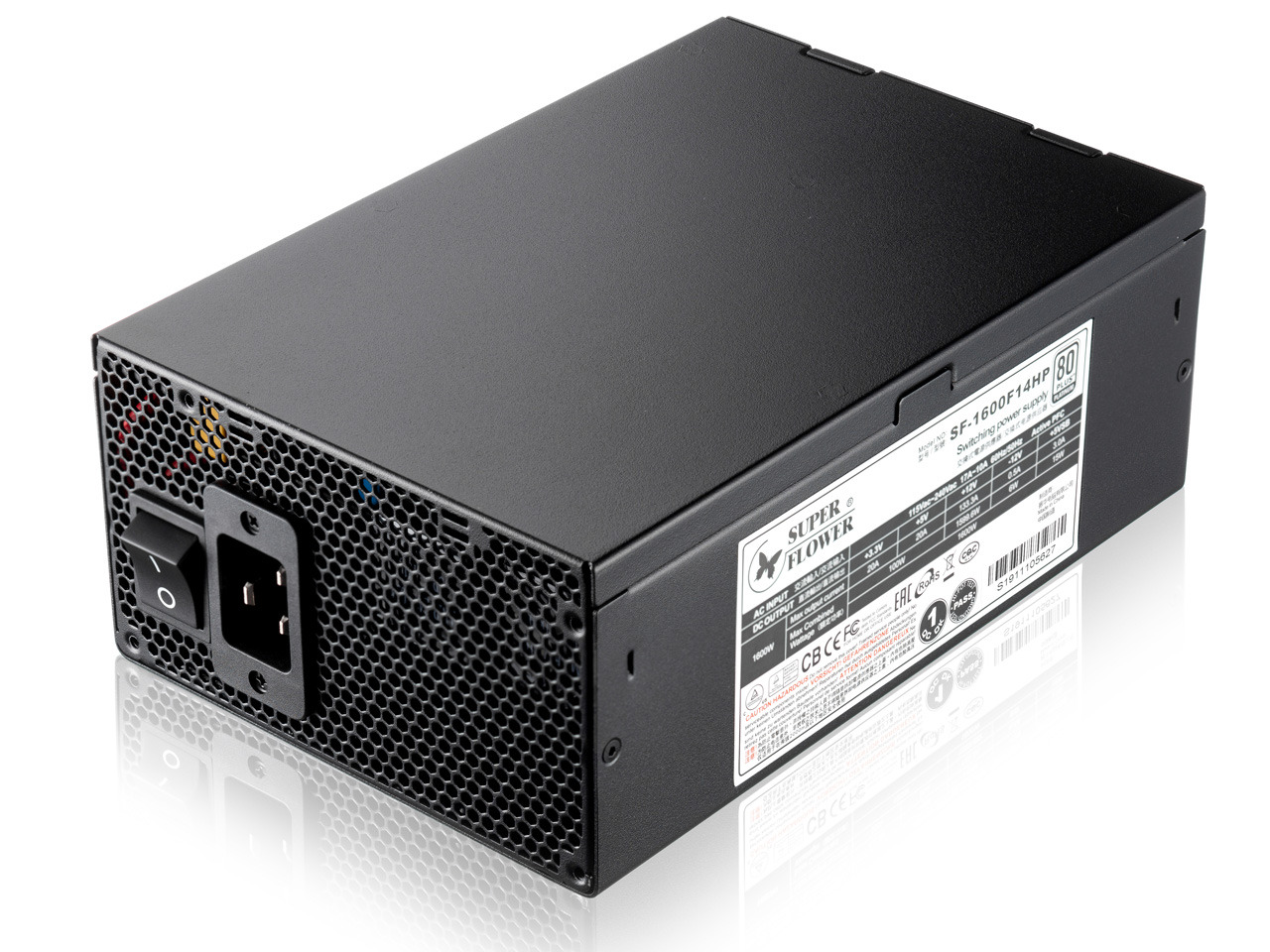

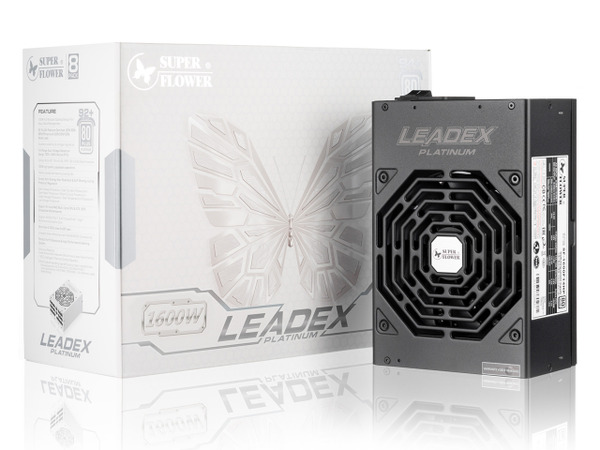

Super Flower Leadex Platinum 1600W Fully Modular SMPS

LAEDEX  Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

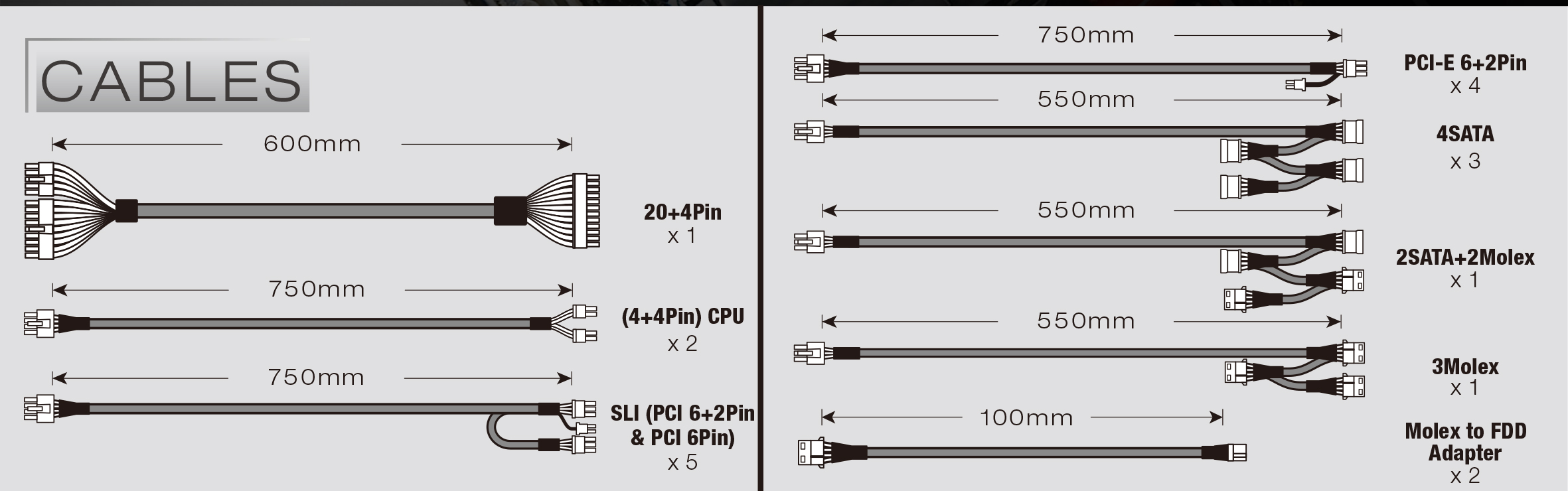

• 100% Full Modular Cabling Design For Easy Cable Management.

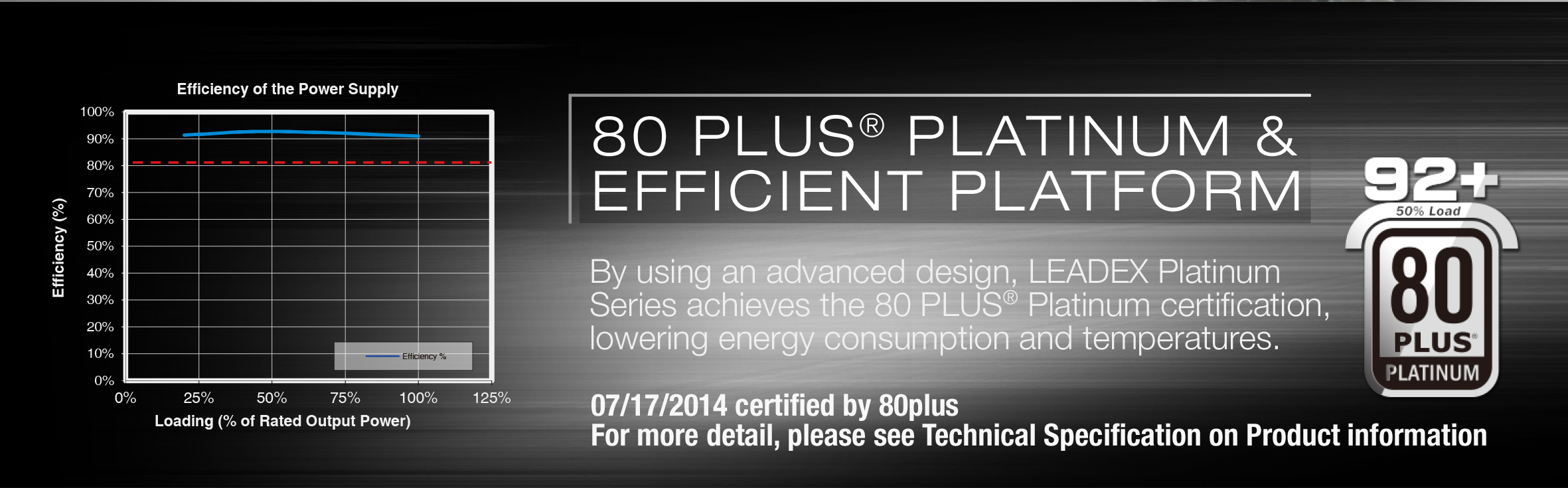

• 80 PLUS ® Platinum Certified, 90???ficiency At 20P0% Rated Load.
• Excelent stability & voltage regulation.
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
• Comply With ATX 12V v2.32 & SSI EPS 12V v2.92 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.

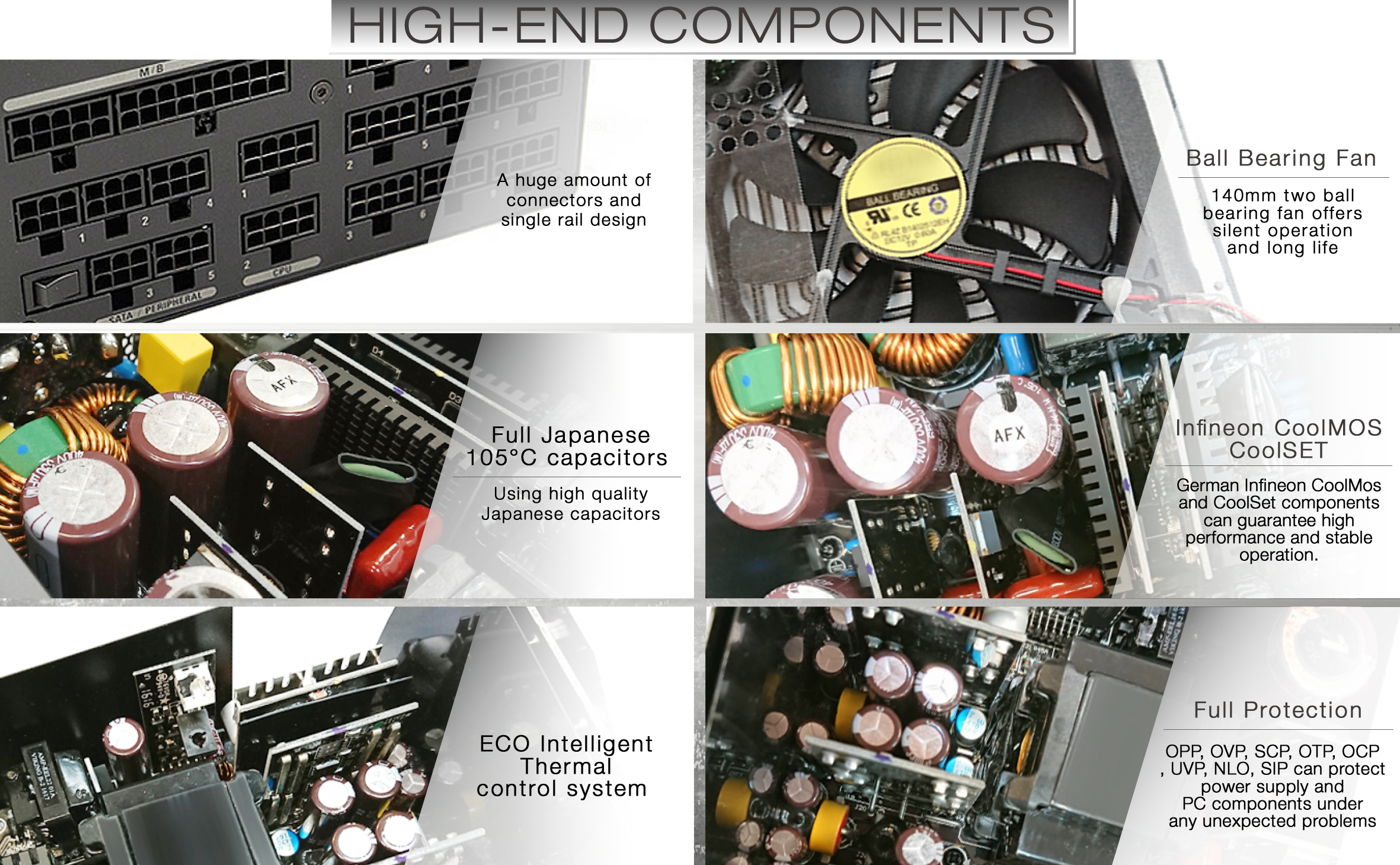

• 100% high quality Japanese capacitors.
• 140mm double ball bearing cooling fan.
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
• Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
• Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
• More than 2,000 times On/Off test.
• Unleaded Green Materials with RoHS/WEEE Compliance.
• Perfect For Professional & High Performance Gaming System.
• Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.

Exclusive Patents(Taiwan & China Patents Approved,USA,Germany & Japan Patent Pending)

• ECO Intelligent Thermal Control System.
• Multi patent pending high efficiency main transformer.
• (China Application No: 201410414373.3 / 201420474128.7?Taiwan Application No: 103127942 / 103214502)

This product is designed for personal desktop system and high-end gaming systems, warranty void  if use for the following special-purpose system:

• Industrial grade server system.
• Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
• Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

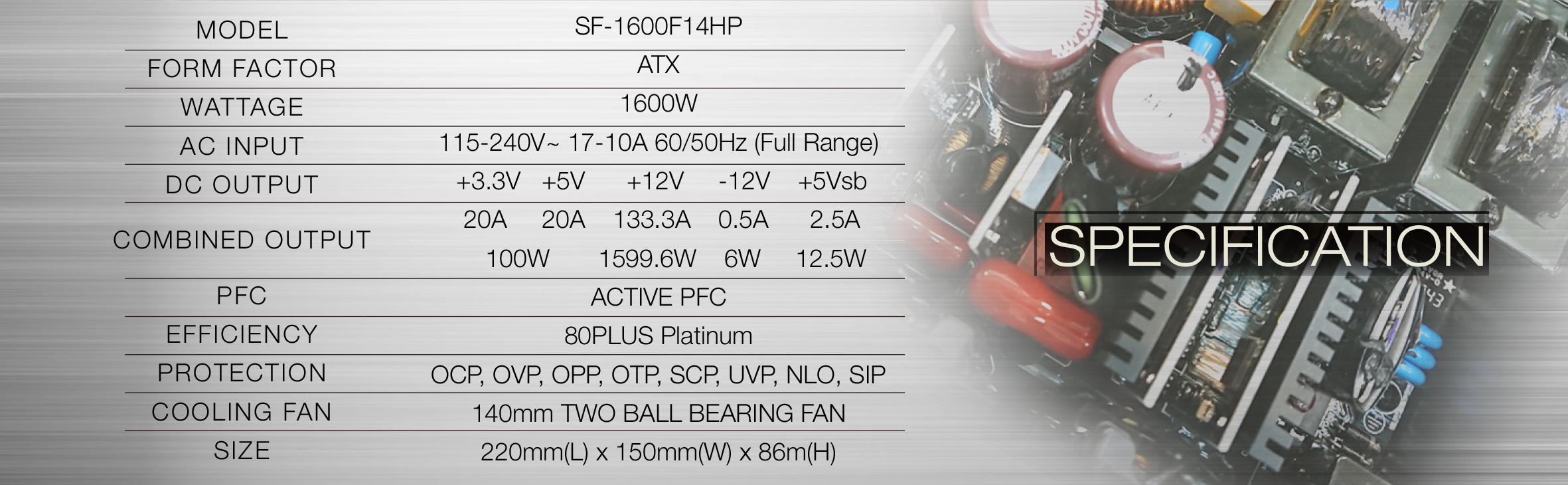

Specification
