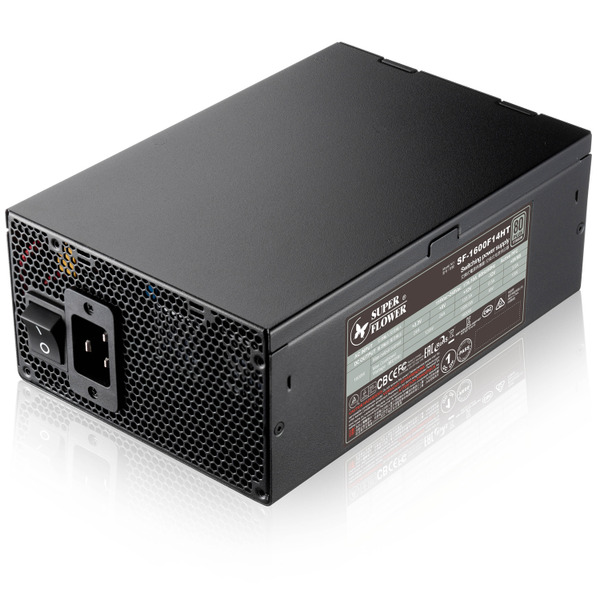

Super Flower Leadex Titanium 1600W Fully Modular SMPS

LEADEX Titanium series PSU are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

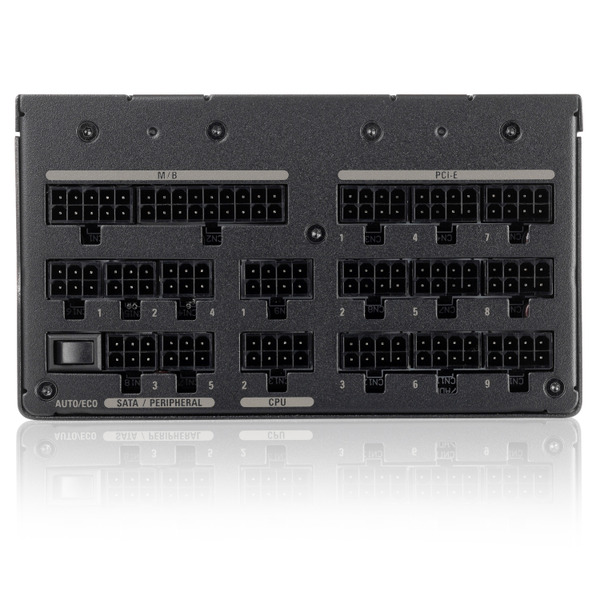

100% Full Modular Cabling Design For Easy Cable Management

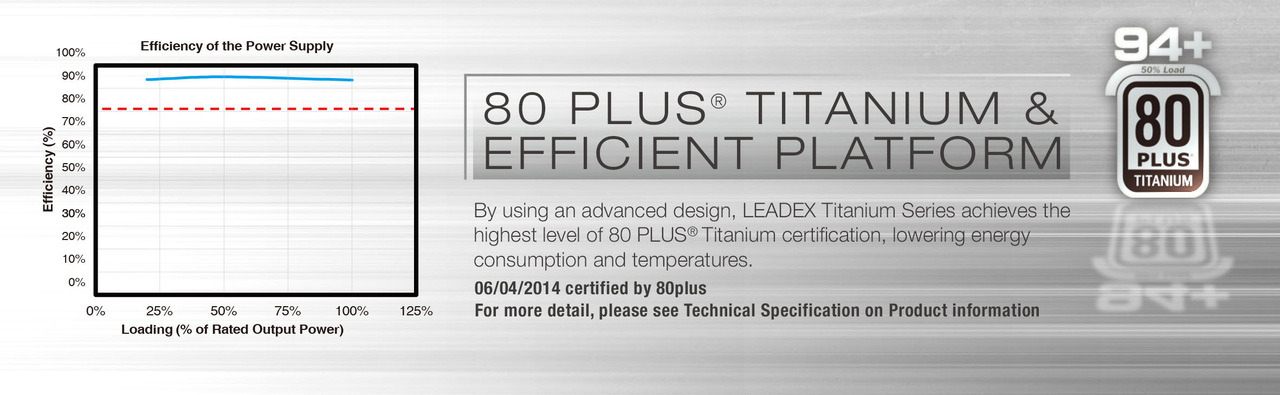

80 PLUS® Titanium Certified, 90????ficiency At 10 P0% Rated Load
Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
Comply With ATX 12V. V2.2, EPS 12V. V2.91 & SSI EPS 12V. V2.92 Specification
Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
More than 2,000 times On/Off test
Unleaded Green Materials with RoHS/WEEE Compliance
Perfect For Professional & High Performance Gaming System

Exclusive Patents
(Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)

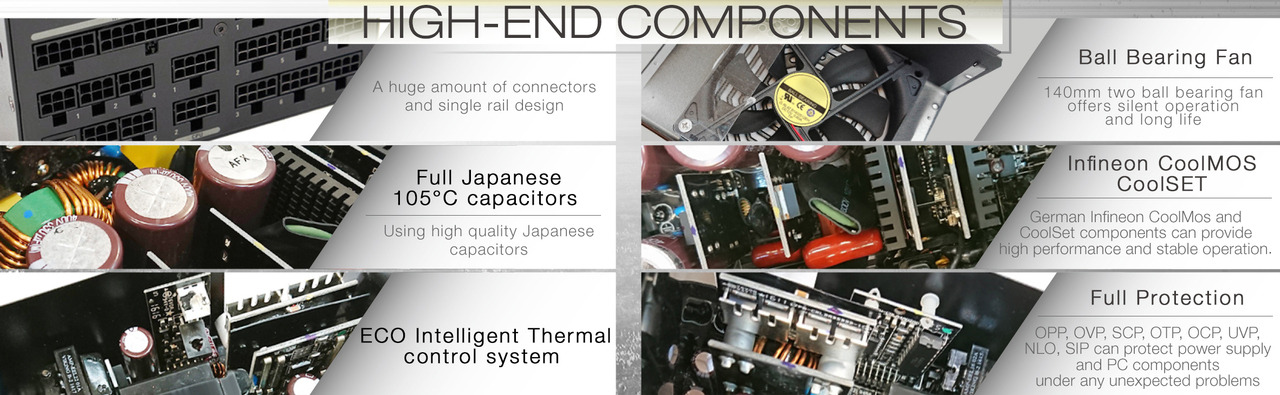

1. ECO Intelligent Thermal Control System
2. Multi Patenet Pending Extreme High Efficiency Main Transformer

This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:

Industrial grade server system.
Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
Test equipment system (for example: memory RAM, VGA graphic card or USB device test)

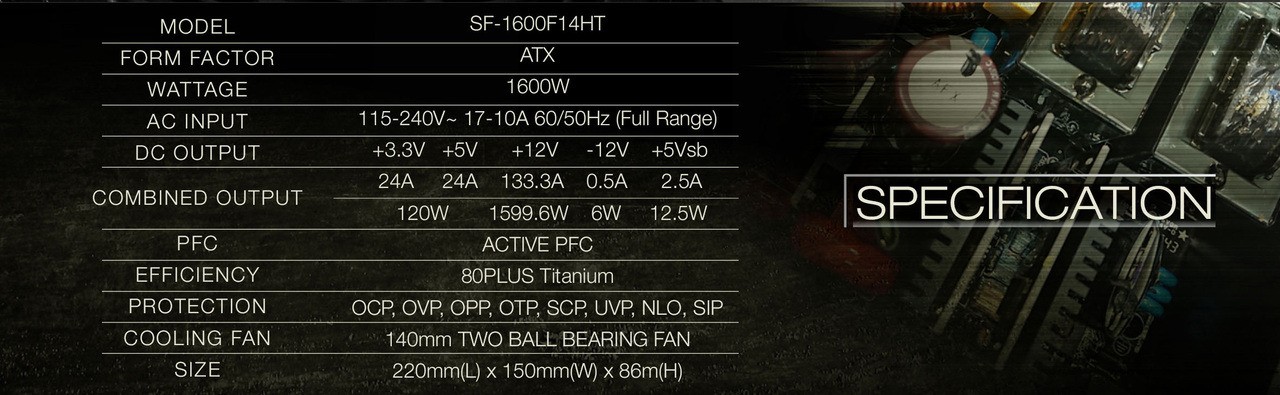

Specification

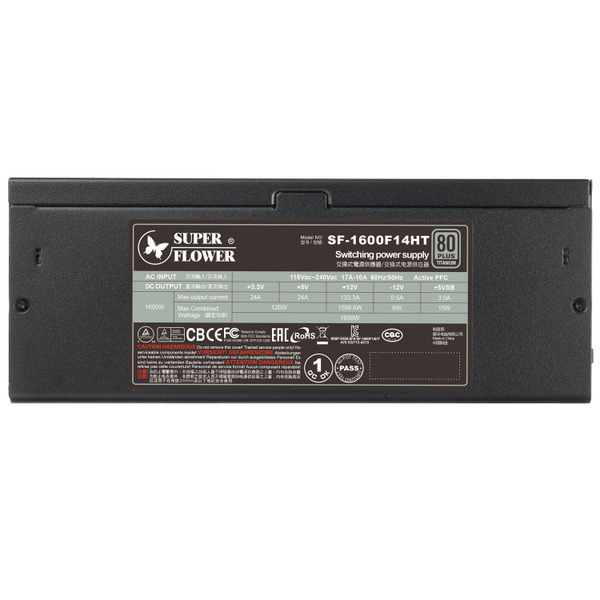

Model No.	SF-1600F14HT
Wattage	1600W
80+ Efficiency	10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium)
Intel Power Design Guide	V2.92

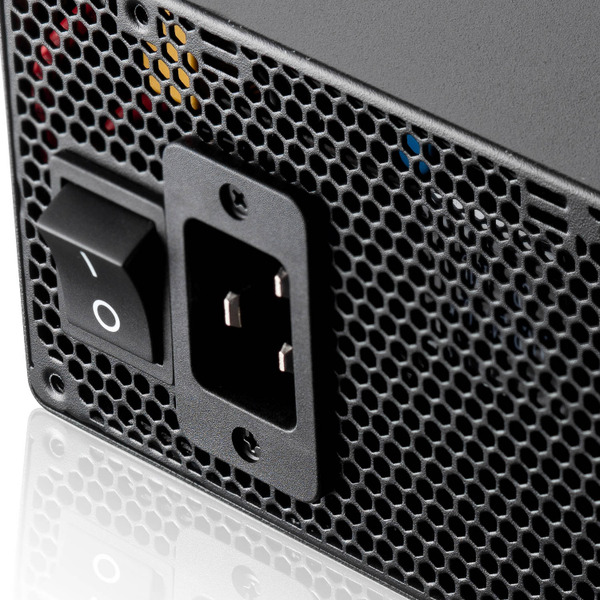

AC Input / Frequency	100-240V \| 60 / 50Hz
Fan Size	140mm Two-Ball Bearing Fan
Dimension	220mm(L) x 150mm(W) x 86mm(H)
Protection	OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP
Safety	cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC
Temprature	Passed 50? Hot Testing

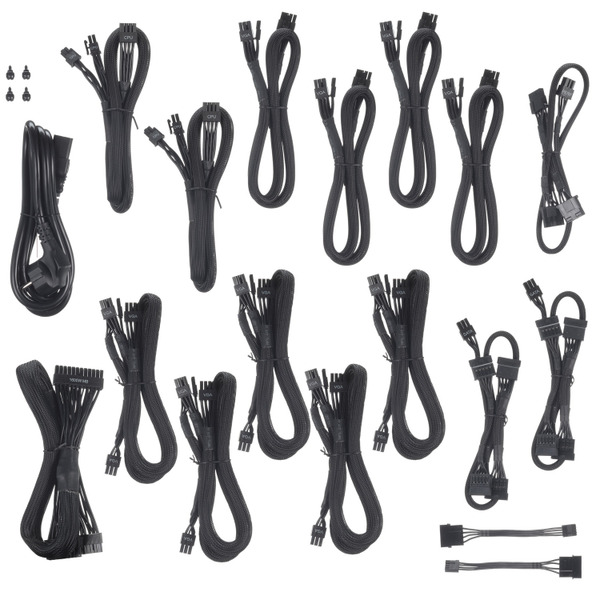

Cable Spec
20+4Pin	Detachable Cables	One cable (600mm)
8 (4+4) Pin CPU		Two cables (750mm)
PCI-E 6+2Pin		Four cables (750mm)
SLI (2 x PCI 6+2Pin)		Five cables (750+150mm)
4SATA		Three cables (550+100+100+1000mm)
2SATA+2Molex		One cable (550+100+100+100mm)
3Molex		One cable (550+100+100mm)
Molex to FDD Adapter		Two cables (100mm)
