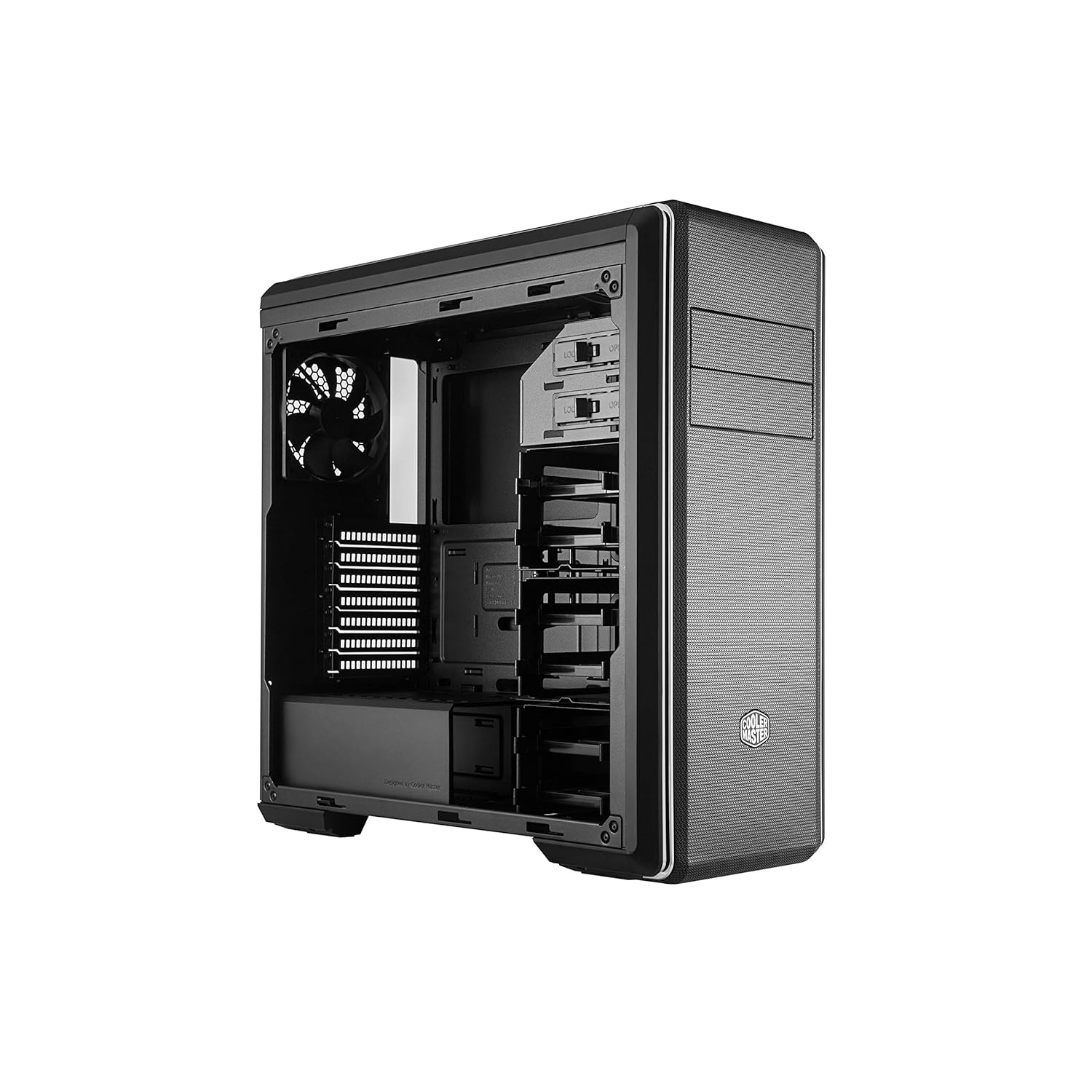

Cooler Master MasterBox CM694 Cabinet (Black)

Features

• Mid Tower ( 493mm x 224mm x 506mm) Cabinet using Steel and Plastic
• 7 PCI Slots, 3 Drive Cages (Total of 6 HDDs), 8 SSDs (2 + 6 in Cages)
• 2 x USB 3.0 ports, 1 x USB 3.1 (Gen 2) Type-C port, and 1 x 4 pole Headset jack
• 2 x 120mm Fans Pre-installed at front, 1 x 120mm fan pre-installed at rear, 360 ° Radiator support at top
• Graphics Card Clearance of 280mm (with stabilizer + drive cage), 350mm with stabilizer, CPU Cooler Clearance of 171mm
• Warranty: 1 Year from Date of Purchase (Invoice Copy required)

CURVED MESH

The top and front panels are entirely mesh, featuring the iconic CM690 curve and Cooler Master's signature rhombus pattern. The fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

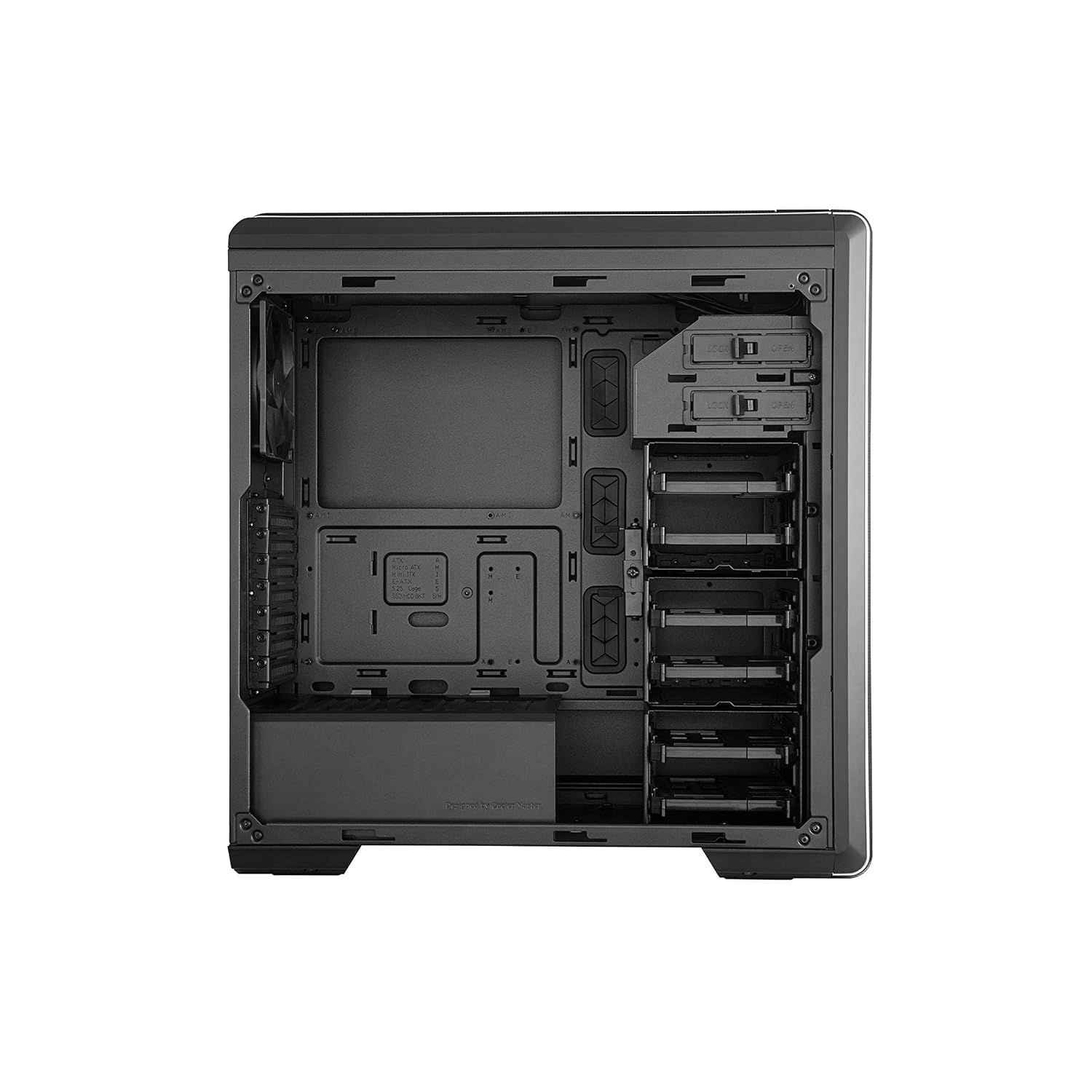

MODULAR DRIVE CAGES

3 Drive Cages can be individually added, removed, or repositioned to make room for longer graphics cards and/or top & front radiators.

GRAPHICS CARD STABILIZER

Graphics cards installed within the case are reinforced by an arm, ensuring the safe delivery and transportation of systems.

RICH CONNECTIVITY (I/O PANEL)

The dust-proof I/O Panel features rubber shields, 2 x USB 3.0 ports, a USB 3.1 (Gen 2) Type-C port, and a 4 pole headset jack.

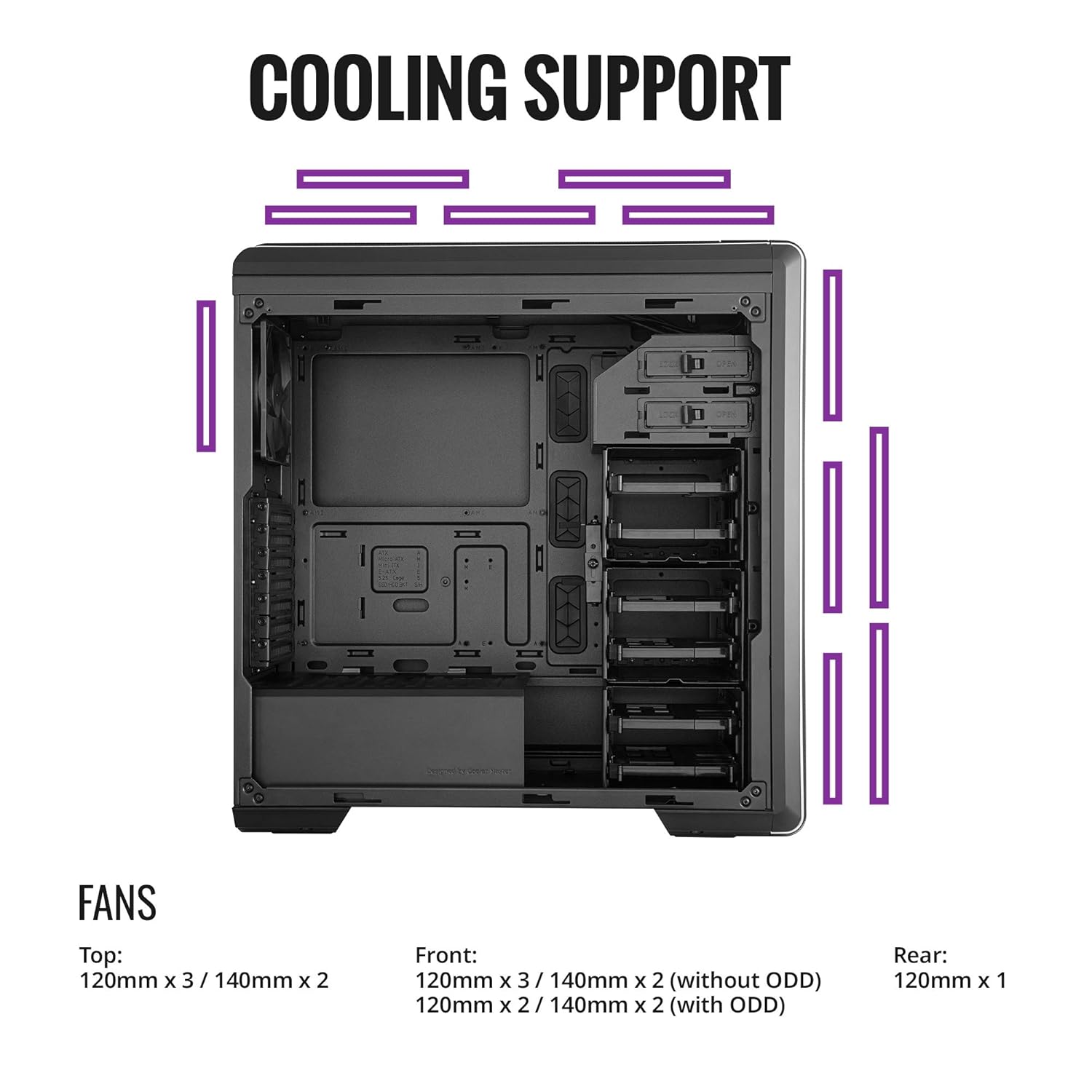

COOLING SUPPORT

RADIATORS

COOLING SUPPORT

FANS

MOTHERBOARD SUPPORT

• Mini-ITX
• Micro-ATX
• ATX
• E-ATX *

*E-ATX up to 12? x 10.7? Impacts cable management options

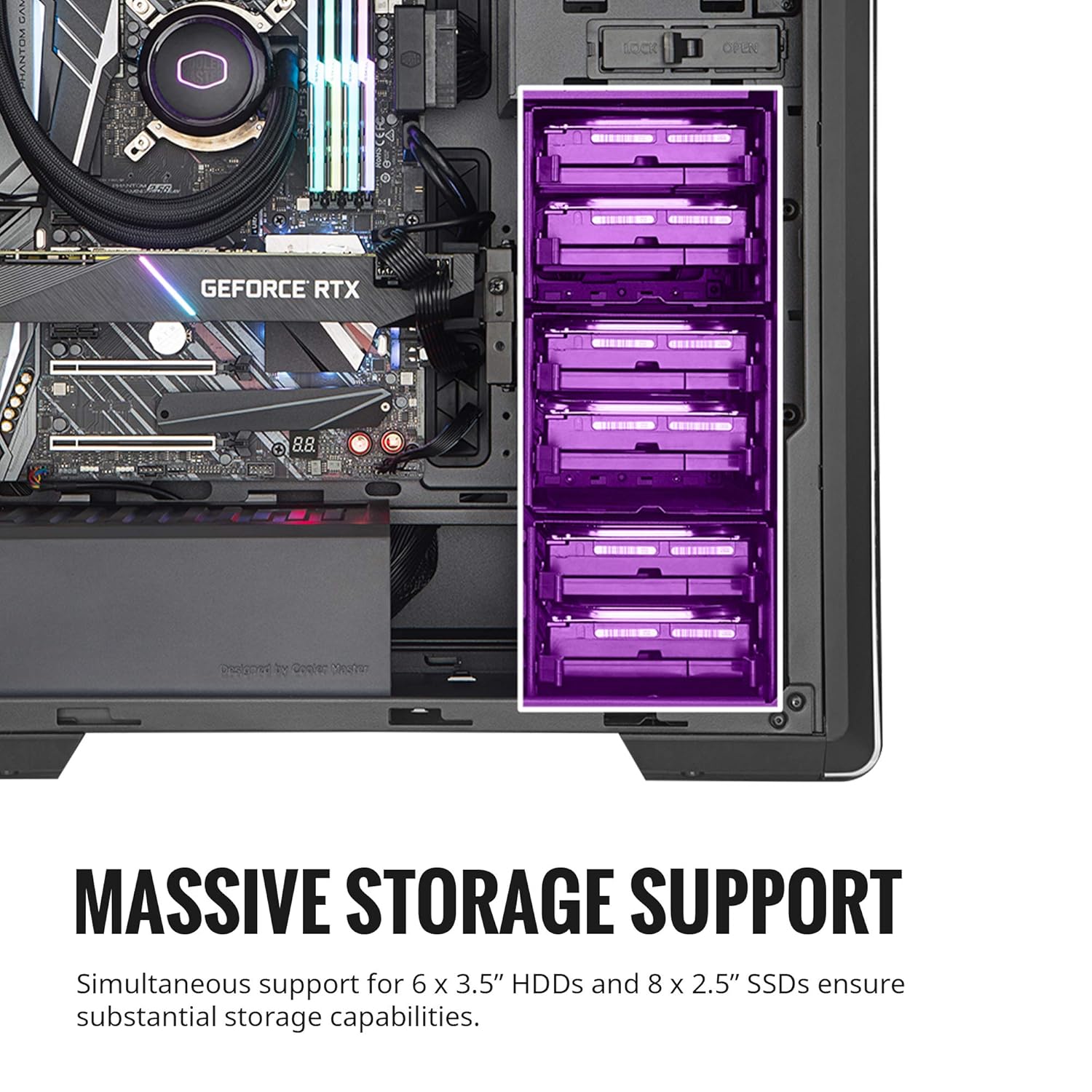

MASSIVE STORAGE SUPPORT

• Simultaneous support for 6 x 3.5” HDDs and 8 x 2.5” SSDs ensure substantial storage capabilities.

Specifications
