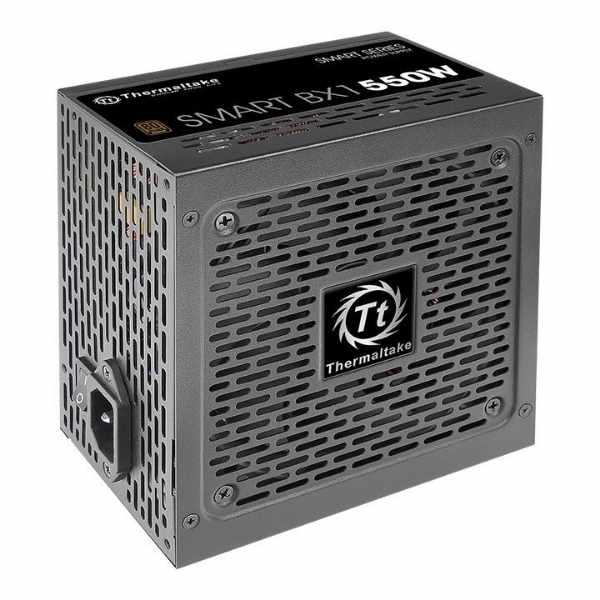

Thermaltake Smart BX1 550W 80 Plus Bronze SMPS

0.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

Thermaltake Smart BX1 550W PSU for Efficient, Quiet Computing

The Thermaltake Smart BX1 550W is non-modular ATX power supply for value-oriented, stable and silent performance. Built by Thermaltake, features 80 PLUS Bronze certification for up to 88% power efficiency, premium Japanese capacitors, and a 120mm hydraulic bearing fan. With active PFC, extensive protection circuitry, and 5-year warranty, it's ideal for home, office, and gaming builds.

Features:

80 PLUS Bronze certified (up to 88?ficiency)
Quiet 120mm hydraulic bearing fan
Durable Japanese main capacitors
Stable single +12V rail output
Multiple connectors for VGA, SATA, and peripheral drives
Non-modular soft black sleeved cabling
Active PFC and full protection (OVP/OPP/SCP)
5-year manufacturer warranty
MTBF 100,000 hours minimum
CE/CB/TUV/UL/FCC/BSMI certified safety

Specifiactions:

Brand	Thermaltake
Model Number	SPS-SPD-0550NNFABx-1
Color	Black
Weight	~1 kg
Dimensions (W x H x D)	150 x 86 x 140 mm
Wattage	550W
Efficiency	80 PLUS Bronze (up to 88%)
Form Factor	ATX
Input Voltage	100V – 240V~
Input Frequency Range	50Hz - 60Hz
Input Current	10A max
Output Rails	Single +12V Rail
Cooling System	120mm Hydraulic bearing fan
Connectors	2 x PCI-E 6+2pin, 6 x SATA, 4 x Peripheral 4-pin
Power Good Signal	100-500 ms
Hold Up Time	> 16 ms at 70% full load
Operating Temp.	5°C to +40°C
Storage Temp.	-40°C to +55°C
Humidity	Operating: 20-85%; Storage: 10-95%
Warranty	5 Years
MTBF	100,000 hours minimum
Safety Approval	CE/CB/TUV/UL/FCC/BSMI
Certification	80 PLUS Bronze
Modular	No
Note	Features, specifications, prices subject to change, For representation purposes only
