Gigabyte B760M Gaming X AX WIFI (DDR5) Motherboard

16990.00 17990.00

Availability: In stock

Add to cart

Ask For Price

Description
Additional Information

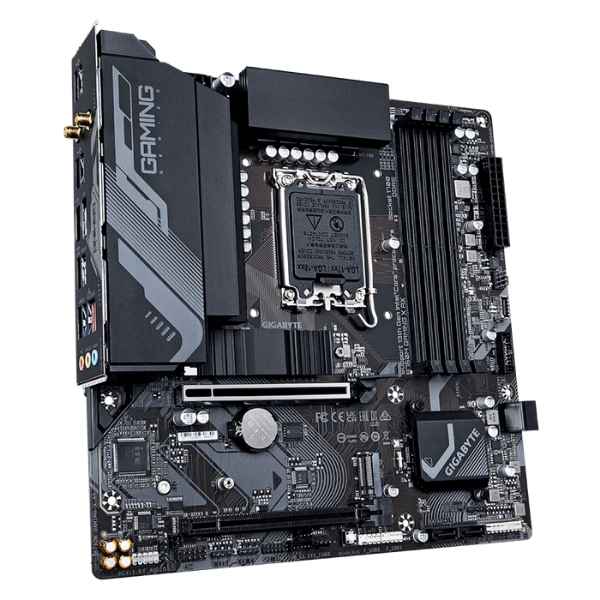

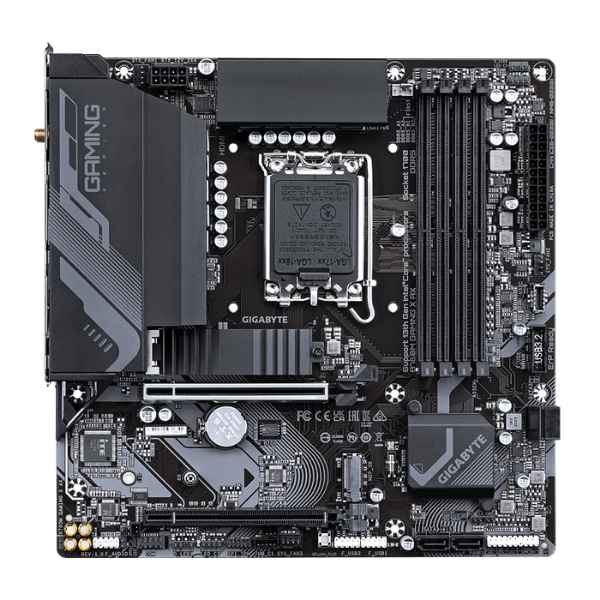

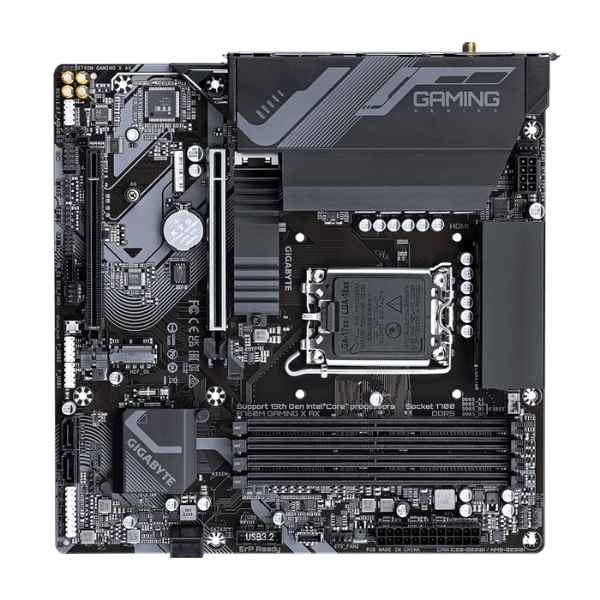

Gigabyte B760M Gaming X AX (Wi-Fi) mATX Intel Motherboard

Features

Supports Intel^® Core™ 14th/ 13th /12th processors
Unparalleled Performance?Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR5?4*DIMMs XMP Memory Module Support
Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard ?To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch?PCIe 4.0x16 Slot with Quick Release Design
Fast Networks?2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity?Front USB-C^® 10Gb/s, DP, HDMI
Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications

Model Number	B760M-GAMING-X-AX
CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer “CPU Support List” for more information.)
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1R x 8 / 2R x 8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/ 1 Gbps/ 100 Mbps)
Wireless Communication Module	Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160 MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: 1 x PCI Express x 16 slot, supporting PCIe 4.0 and running at x 16 (PCIE X 16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE X 16 slot. Chipset: 1 x PCI Express x 16 slot, supporting PCIe 3.0 and running at x 4 (PCIE X 4)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x 4 / x 2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110 / 2280 PCIe 4.0 x 4 / x 2 SSD support) (M2P_SB) 4 x SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0 / 1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0 / 1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

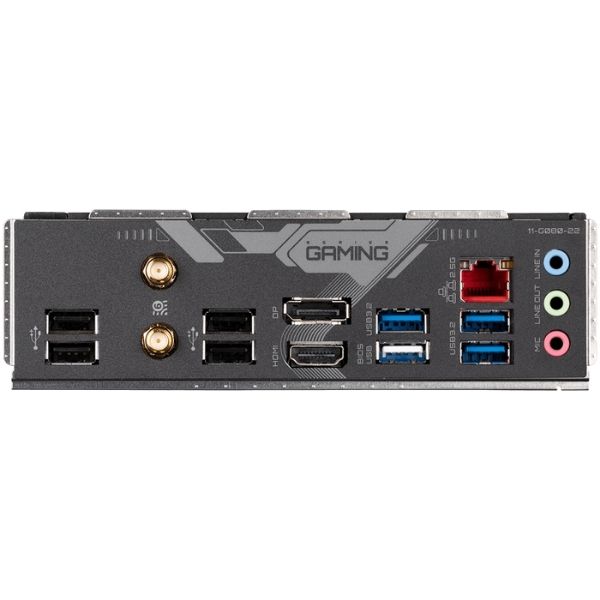

Back Panel Connectors	3 x USB 3.2 Gen 1 ports 5 x USB 2.0 / 1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4 cm x 24.4 cm
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only
