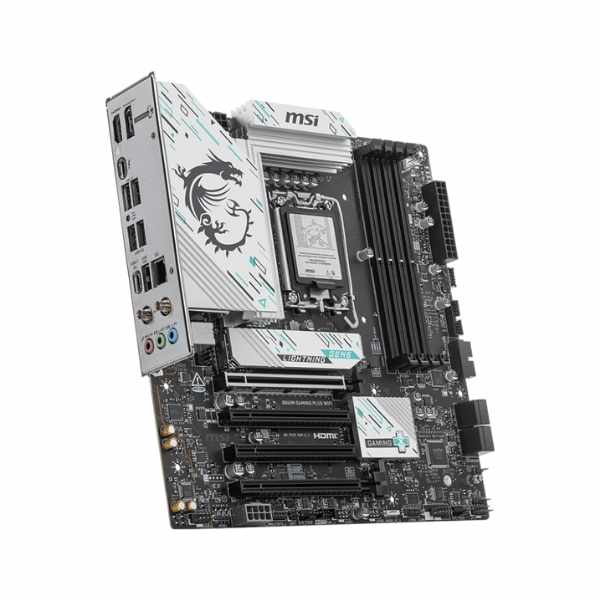

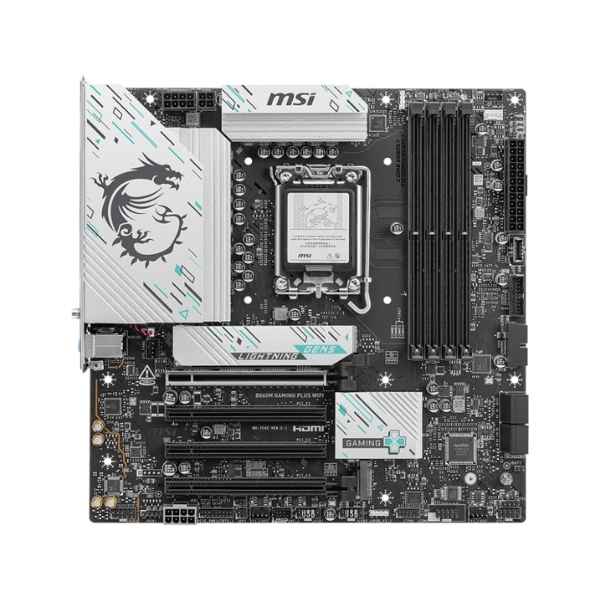

MSI B860M Gaming Plus WIFI Motherboard

18500.00 22000.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

MSI B860M Gaming Plus WIFI M-ATX Motherboard

Features:

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN &
Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

The B860M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Specifications

Model Name	B860M GAMING PLUS WIFI
CPU Support	Supports Intel® Core™ Ultra Processors (Series 2)
CPU Socket	LGA 1851
Chipset	Intel® B860 Chipset
Expansion Slots	1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots
Display Interface	Thunderbolt™ 4 (Type-C), Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 HBR2 – Requires Processor Graphics
Memory Support	4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)
Storage	1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps slot, 1 x M.2 Gen4 x2 32Gbps slot, 4 x SATA 6Gbps ports
Thunderbolt™ 4	1 x USB Type-C up to 40Gbps, Charging support up to 5V/3A, 15W

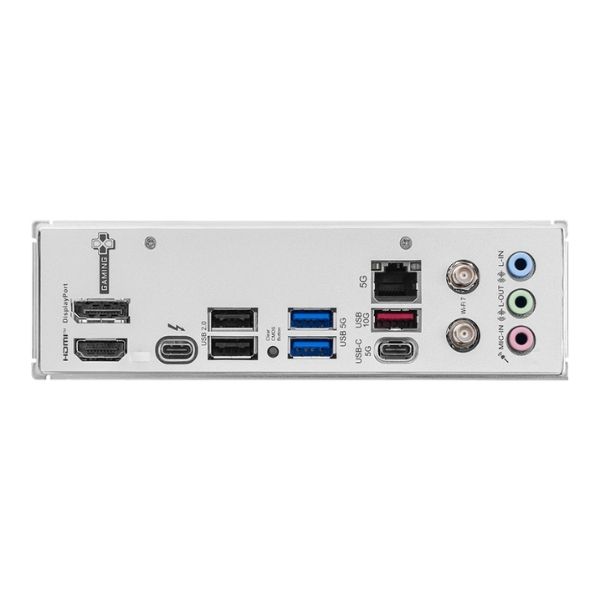

USB ports	2 x USB 10Gbps (1 Type-A + 1 Type-C), 7 x USB 5Gbps (6 Type-A + 1 Type-C), 6 x USB 2.0
LAN	Intel® Killer™ E5000B 5Gbps LAN
WiFi / BT	Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
Audio	8-Channel (7.1) HD Audio with Audio Boost
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only
