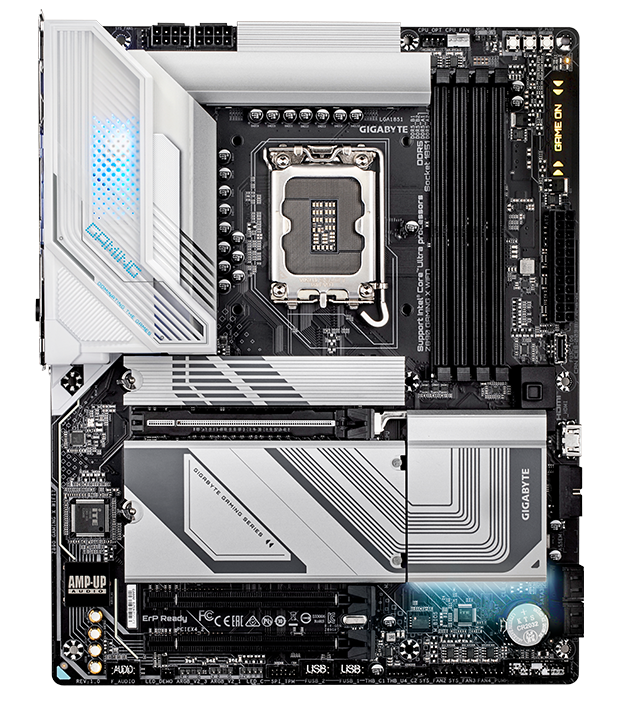

Gigabyte Z890 GAMING X WIFI7 Motherboard

26000.00 48000.00

Features

Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Model	Z890 GAMING X WIFI7
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	4 x M.2
SATA RAID	0/1/0+1/5/10
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
Wireless LAN	WIFI 7

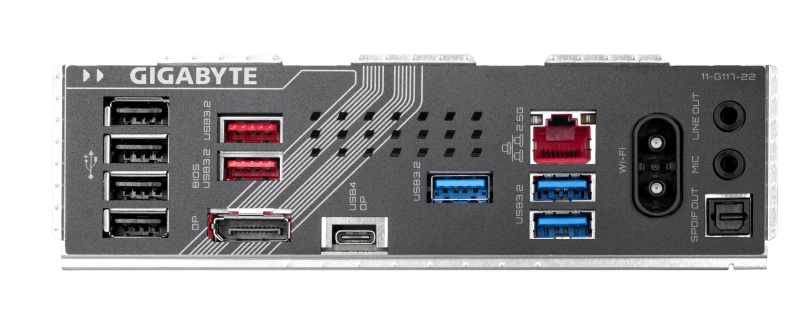

Back I/O Ports	1 x DisplayPort / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB4 / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 1 / 4 x USB 2.0/1.1
Windows 11	Supported
Form Factor	ATX
Warranty period	3 Years
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only
