MSI PRO H610M-E (DDR4) Motherboard

5990.00 7500.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

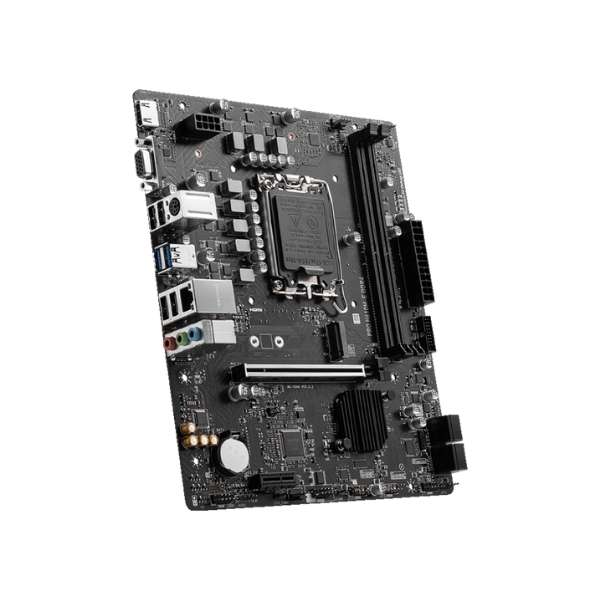

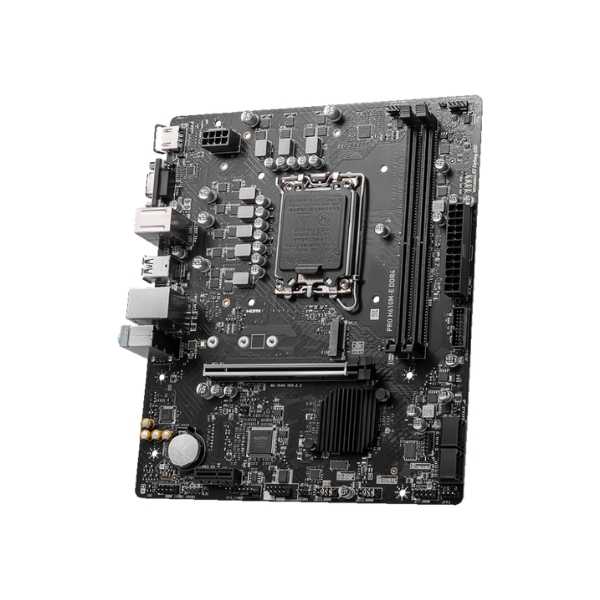

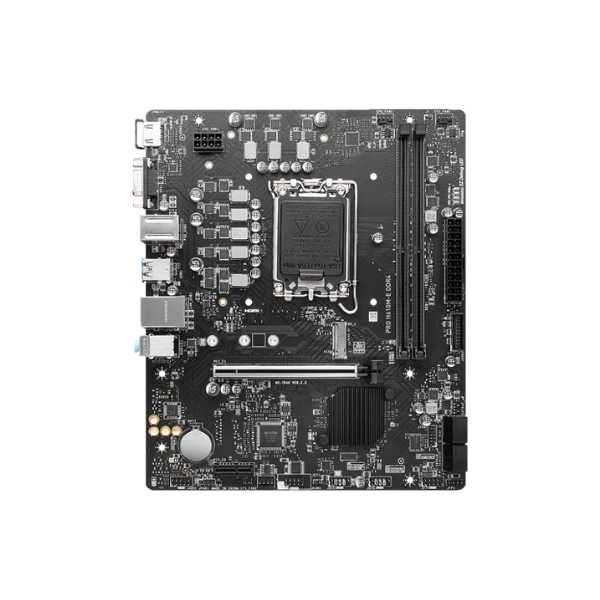

MSI PRO H610M-E (DDR4) Intel LGA 1700 Socket mATX Motherboard

Features:

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Specifications:

Model	PRO H610M-E DDR4
Processor	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released.
Chipset	Intel H610 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slot	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
Onboard Graphics	1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SATA Ports	4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot	1x M.2 slot (Key M) (from H610 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek RTL8111H 1Gbps LAN controller
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin +12V power connector
Internal USB Connectors	1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports
Fan Connectors	1x 4-pin CPU fan connector 2x 4-pin system fan connectors
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector
Jumpers	1x Clear CMOS jumper
LED Features	1x 4-pin RGB LED connector 4x EZ Debug LED

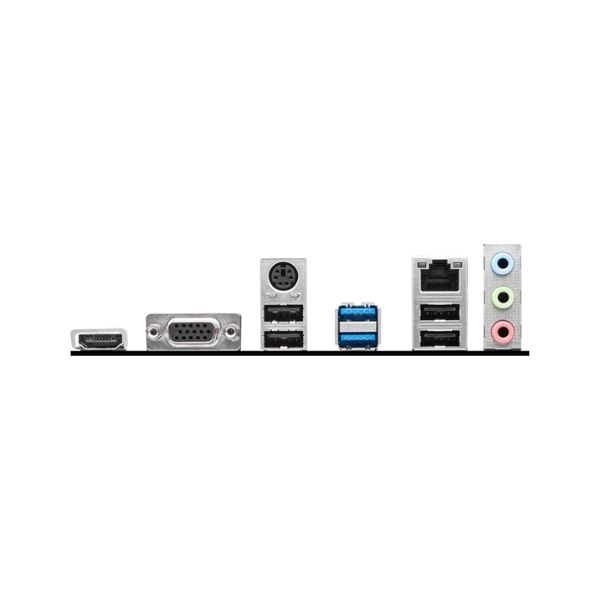

Back panel ports	HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
Dimensions	M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Warranty	3 Years
Note	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
