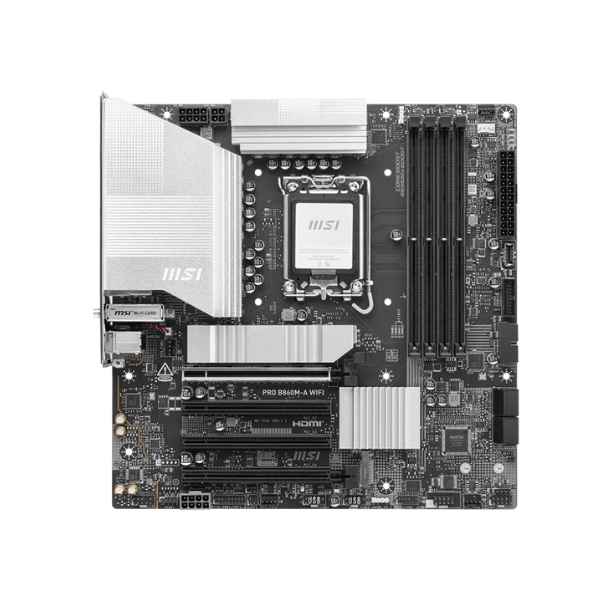

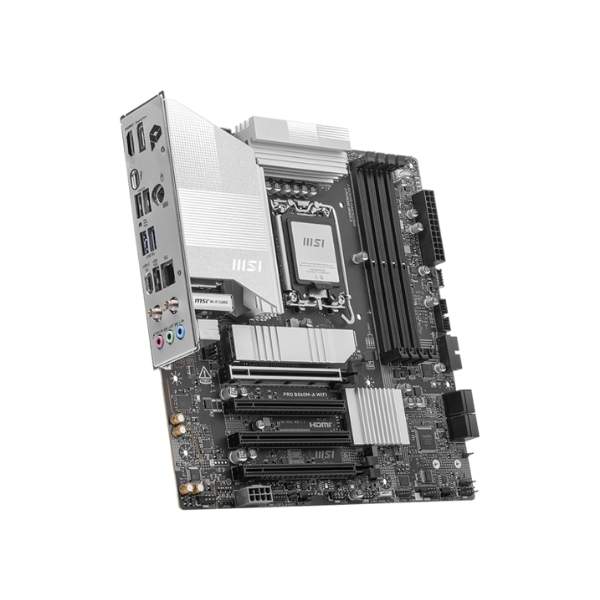

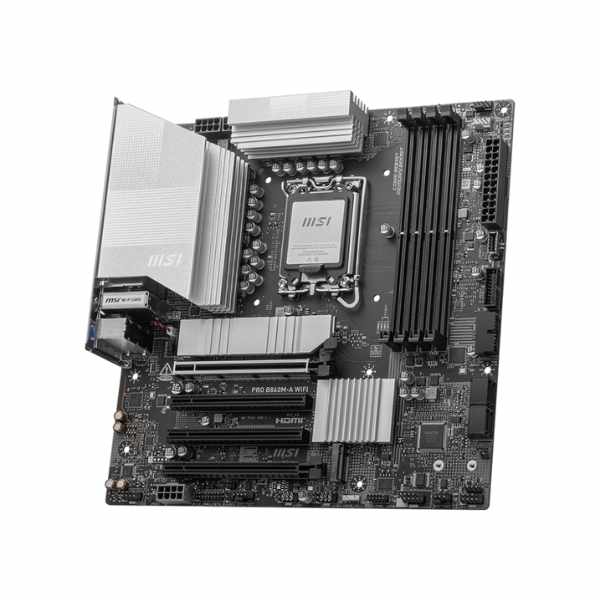

MSI Pro B860M-A WIFI Motherboard

Name: Computer Server Solutions
Address: 104, Deepali Building, 92, Nehru Pl Market Rd, Nehru Place, New Delhi, Delhi, 110019, IN
Telephone: +91-9289111417
Price range: ₹₹ - ₹₹₹
Rating: 4.7

17990.00 21000.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

MSI Pro B860M-A WIFI DDR5 LGA 1851 mATX Motherboard

Features

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications

Model Name	PRO B860M-A WIFI
CPU Support	Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket	LGA 1851
Expansion Slots	1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot 2 x PCIe 4.0 x1 slots
Display Interface	1 x Thunderbolt™ 4 (Type-C), Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Memory Support	4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)
Storage	1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps slot, 1 x M.2 Gen4 x2 32Gbps slot, 4 x SATA 6Gbps ports
Thunderbolt™ 4	1 x USB Type-C up to 40Gbps, Charging support up to 5V/3A , 15W
USB ports	2 x USB 10Gbps (1 Type-A + 1 Type-C), 7 x USB 5Gbps (6 Type-A + 1 Type-C), 6 x USB 2.0
LAN	Realtek® 8126 5G LAN
WiFi / BT	Intel® Wi-Fi 7, Bluetooth 5.4
Audio	8-Channel (7.1) HD Audio with Audio Boost
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only
