AMD Ryzen 5 8500G Processor APU with Radeon 740M Graphics, 6 cores and 12 threads, up to 5GHz, AM5 Socket (100-100000931BOX)
AMD Ryzen™ 5 8500G is the ultimate all-in-one desktop processor with AMD Radeon™ 740M Graphics capabilities. For incredible gaming, professional-grade productivity, and magical AI experiences. Performance so fast you can focus on what you care about, whether it’s victory in the game or completing your project with time to spare.
Specification
General Specifications |
|||||||||
| Name | AMD Ryzen™ 5 8500G | ||||||||
| Family | Ryzen | ||||||||
| Series | Ryzen 8000 Series | ||||||||
| Form Factor | Desktops | ||||||||
| Former Codename | Phoenix | ||||||||
| Architecture | 2x Zen 4 , 4x Zen 4c | ||||||||
| # of CPU Cores | 6 | ||||||||
| Multithreading (SMT) | Yes | ||||||||
| # of Threads | 12 | ||||||||
| Max. Boost Clock | Up to 5 GHz | ||||||||
| Max Zen4c Clock | Up to 3.7 GHz | ||||||||
| Base Clock | 3.5 GHz | ||||||||
| Zen4 Base Clock | 4.1 GHz | ||||||||
| Zen4c Base Clock | 3.3 GHz | ||||||||
| L2 Cache | 6 MB | ||||||||
| L3 Cache | 16 MB | ||||||||
| Default TDP | 65W | ||||||||
| Processor Technology for CPU Cores | TSMC 4nm FinFET | ||||||||
| CPU Compute Die (CCD) Size | 137mm2 | ||||||||
| Package Die Count | 1 | ||||||||
| AMD EXPO™ Memory Overclocking Technology | Yes | ||||||||
| CPU Socket | AM5 | ||||||||
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 | ||||||||
| CPU Boost Technology | Precision Boost 2 | ||||||||
| Thermal Solution (PIB) | AMD Wraith Stealth | ||||||||
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 | ||||||||
| Max. Operating Temperature (Tjmax) | 95°C | ||||||||
| Launch Date | 1/31/2024 | ||||||||
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit | ||||||||
Connectivity |
|||||||||
| Native USB 4 (40Gbps) | 2 | ||||||||
| Native USB 3.2 Gen 2 (10Gbps) | 4 | ||||||||
| Native USB 2.0 (480Mbps) | 1 | ||||||||
| PCI Express® Version | PCIe® 4.0 | ||||||||
| Native PCIe® Lanes (Total/Usable) | 14 , 10 | ||||||||
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 | ||||||||
| System Memory Type | DDR5 | ||||||||
| Memory Channels | 2 | ||||||||
| Max. Memory | 256 GB | ||||||||
| System Memory Subtype | UDIMM | ||||||||
| Max Memory Speed |
|
||||||||
Graphics Capabilities |
|||||||||
| Graphics Model | AMD Radeon™ 740M | ||||||||
| Graphics Core Count | 4 | ||||||||
| Graphics Frequency | 2800 MHz | ||||||||
| DirectX® Version | 12 | ||||||||
| DisplayPort™ Version | 2.1 | ||||||||
| DisplayPort Extensions | Adaptive-Sync , HDR Metadata , UHBR10 | ||||||||
|
DisplayPort Max Refresh Rates (SDR) |
7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz | ||||||||
| DisplayPort Max Refresh Rates (HDR) | 7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz | ||||||||
| HDMI® Version | 2.1 | ||||||||
| USB Type-C® DisplayPort™ Alternate Mode | Yes | ||||||||
| Max Displays | 4 | ||||||||
| AMD FreeSync™ | Yes | ||||||||
| Wireless Display | Miracast | ||||||||
| Max Video Encode Bandwidth (SDR) | 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 | ||||||||
| Max Video Decode Bandwidth | 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1 | ||||||||
| AMD SmartAccess Memory | Available | ||||||||
Product IDs |
|||||||||
| Product ID Boxed | 100-100000931BOX | ||||||||
| Product ID Tray | 100-000001491 , 100-000000931 | ||||||||
Key Features |
|||||||||
| AMD Enhanced Virus Protection (NX bit) | Yes | ||||||||
| Warranty | 3 Years | ||||||||
| Note |
*** Features, Price, Specifications are subject to change without notice. *** Images are for Representation purposes only |
||||||||
Similar
Products
Related Products

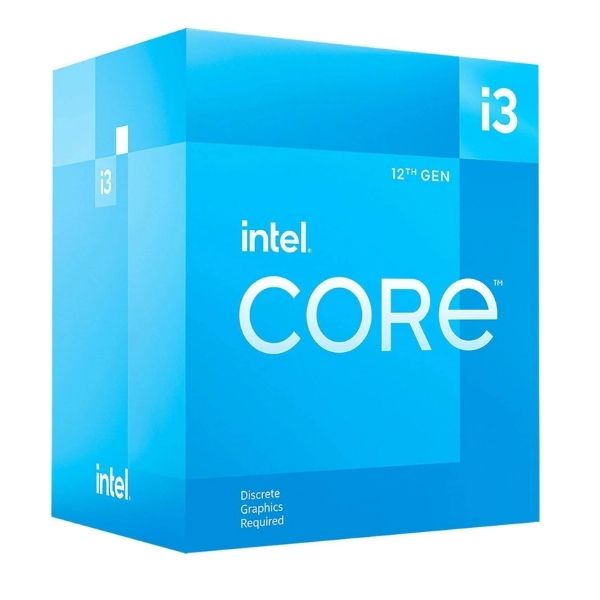

Intel Core I3-12100F Processor
