Intel Core I3-14100 Processor

10790.00 11490.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

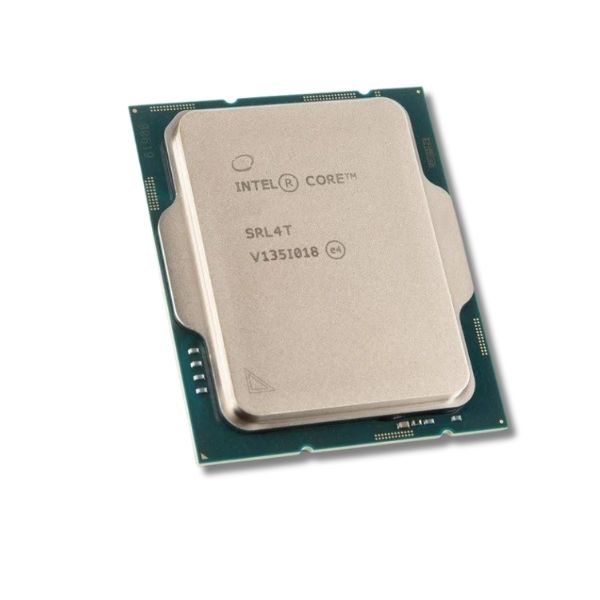

Intel Core i3-14100 Up to 4.7 GHz 4-Core LGA 1700 Desktop Processor (BX8071514100)

Feature:

Power up your everyday tasks with the Intel Core i3-14100 3.5 GHz 4-Core LGA 1700 Processor. Built with the Intel 7 process, this entry-level 14th-generation desktop processor delivers optimised power efficiency with four 3.5 GHz Performance cores while fitting the LGA 1700 socket.

This processor can handle various workloads. It has 12MB of cache and a 4.7 GHz Max Turbo frequency. The Core i3-14100 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz.

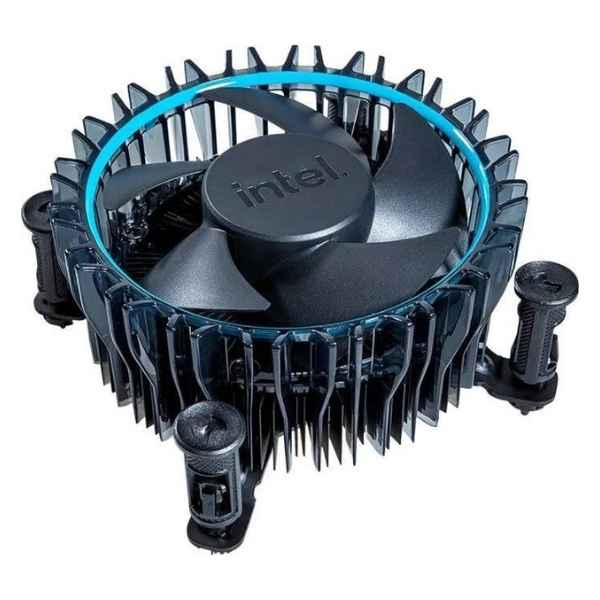

The Core i3-14100 features integrated Intel UHD 730 Graphics. A Laminar RM1 cooler is included.

PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics
The integrated Intel UHD 730 Graphics delivers rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays.

Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.

Specification :

Model	I3-14100
Product Collection	Intel® Core™ i3 Processors (14th gen)
Code Name	Products formerly Raptor Lake
Vertical Segment	Desktop
Lithography	Intel 7
Use Conditions	PC/Client/Tablet
CPU Specifications
Total Cores	4
# of Performance-cores	4
# of Efficient-cores	0
Total Threads	8
Max Turbo Frequency	4.7 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Performance-core Base Frequency	3.5 GHz
Cache	12 MB Intel® Smart Cache
Total L2 Cache	5 MB
Processor Base Power	60 W
Maximum Turbo Power	110 W
Memory Specifications
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 4800 MT/s
	Up to DDR4 3200 MT/s
Max # of Memory Channels	2
Max Memory Bandwidth	76.8 GB/s
GPU Specifications
GPU Name‡	Intel® UHD Graphics 730
Graphics Max Dynamic Frequency	1.5 GHz
Graphics Output	eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units	24
Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
Max Resolution (DP)‡	7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3
Multi-Format Codec Engines	1
Intel® Quick Sync Video	Yes
Intel® Clear Video HD Technology	Yes
# of Displays Supported ‡	4
Device ID	0x4692
Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes	20
Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020C
TJUNCTION	100°C
Package Size	45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator	3
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology ‡	2
Intel® Hyper-Threading Technology ‡	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD)	Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
Warranty	3 Years
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only.
