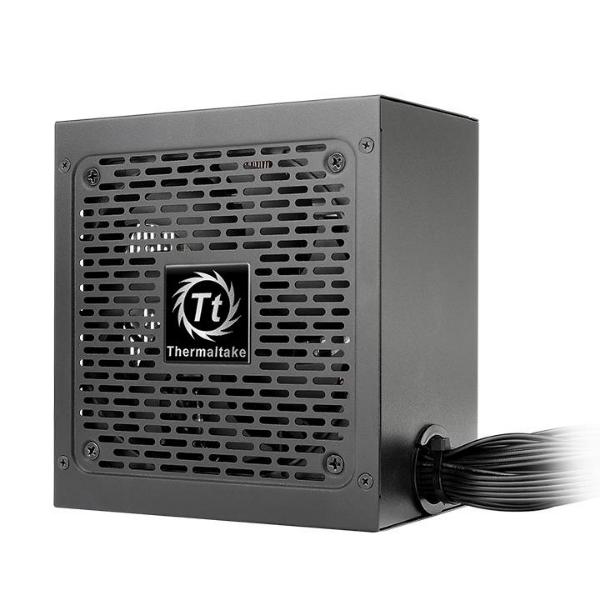

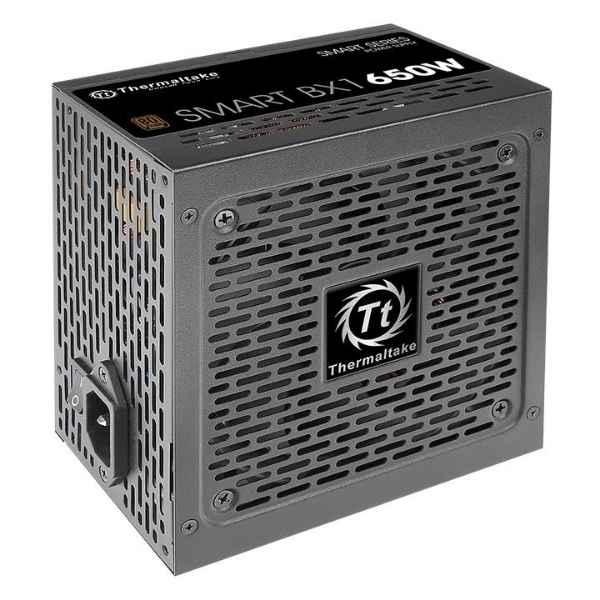

Thermaltake Smart BX1 650W for Efficient, Stable Power Delivery
The Thermaltake Smart BX1 650 Watt Power Supply delivers rock-solid performance for demanding PC builds. This non-modular ATX PSU boasts an 80 PLUS Bronze efficiency rating (up to 88%), a powerful single +12V rail, Japanese capacitors, and a quiet 120mm hydraulic bearing fan. Designed for stability, durability, and value, it features multiple connectors, low ripple noise, and a reliable 5-year warranty—making it ideal for gamers, professionals, and anyone who wants dependable power for workstations or gaming rigs.
Features:
-
80 PLUS Bronze certified (up to 88?ficiency)
-
Non-modular, flat black sleeve cabling
-
Powerful single +12V rail for stable output
-
Premium Japanese capacitors for durability
-

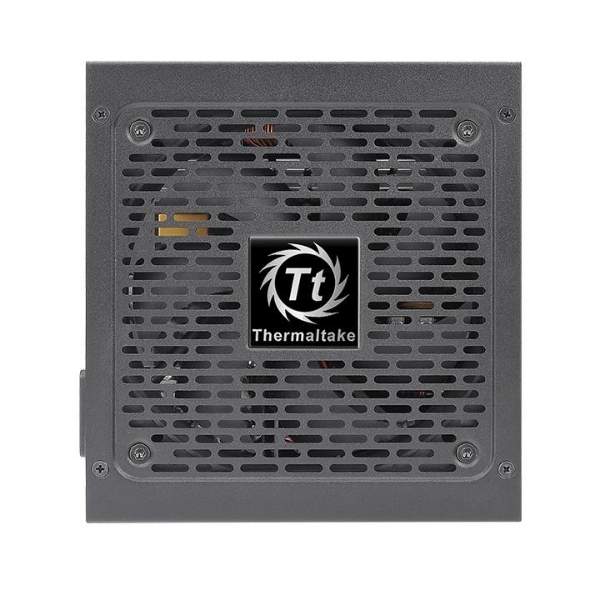

Ultra-quiet 120mm hydraulic bearing fan with intelligent RPM control
-
Multiple connectors (6x SATA, 2x PCIe 6+2 pin, 4x PATA, 1 Floppy)
-
Low ripple noise (<80mV>
-
Operating temperature up to 40°C
-
Active PFC (power factor correction) for efficiency
-
Comprehensive protections: OVP, OPP, SCP
-
5-year warranty
-
CE/CB/TUV/UL/FCC/BSMI safety approved
Specifications:
| Brand | Thermaltake |
| Model Number | SPD-650AH2NKB / SPD-650AH2NLB / SPD-650AH2NCB |
| Color | Black |
| Weight | ~1.4 kg (estimate; confirm for precise) |
| Dimensions | 150mm(W) x 86mm(H) x 140mm(D) |
| Warranty | 5 Years |
| Wattage | 650W Continuous, 780W Peak |
| Efficiency | 80 PLUS Bronze, up to 88% |
| Input Voltage | 100V - 240V~ |
| Input Frequency | 47Hz - 63Hz |
| Max Output Capacity | 650W |
| Cooling System | 120mm Hydraulic Bearing Fan |
| Connectors | 6x SATA, 2x PCIe 6+2 pin, 4x PATA, 1 Floppy |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Operating Temperature | 5°C to 40°C |
| Safety Approval | CE/CB/TUV/UL/FCC/BSMI |
| Protection | OVP, OPP, SCP |
| MTBF | 100,000 hours |
| Certification | 80 PLUS Bronze |
| Form Factor | ATX |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Note | Prices, features and specifications are subject to change without notice. Images are for representation purposes only. |
