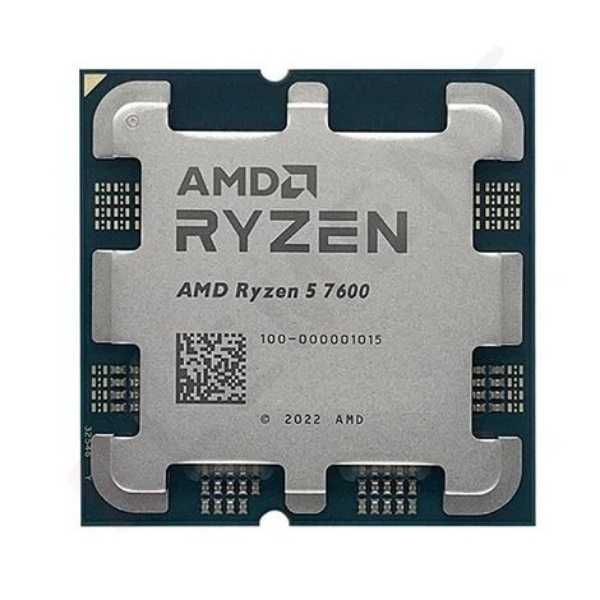

AMD Ryzen 5 7600 Processor with Radeon Graphics

18990.00 20000.00

Availability: In stock

Out Of Stock

Ask For Price

Description
Additional Information

AMD Ryzen 5 7600 Processor With Radeon Graphics (100-100001015BOX)

Description:

AMD Ryzen 5 7600 Series with Radeon Graphics Desktop Processor this Processor Belongs to Raphael Former, It has 6 Cores and 12 Threads, Max boost clock 5.1GHz, It supports AM5 Socket

Specification :

Model	RYZEN-5-7600
General Specifications
Platform	Desktop
Product Family	AMD Ryzen™ Processors
Market Segment	Enthusiast Desktop
Product Line	AMD Ryzen™ 5 Processors
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Former Codename	“Raphael AM5”
Architecture	“Zen 4”
Multithreading (SMT)	Yes
# of CPU Cores	6
# of Threads	12
Max. Boost Clock	Up to 5.1GHz
Base Clock	3.8GHz
L1 Cache	384KB
L2 Cache	6MB
L3 Cache	32MB
Default TDP	65W
Processor Technology for CPU Cores	TSMC 5nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
CPU Compute Die (CCD) Size	71mm?2;
I/O Die (IOD) Size	122mm?2;
Package Die Count	2
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	X670E
	X670
	B650E
	B650
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

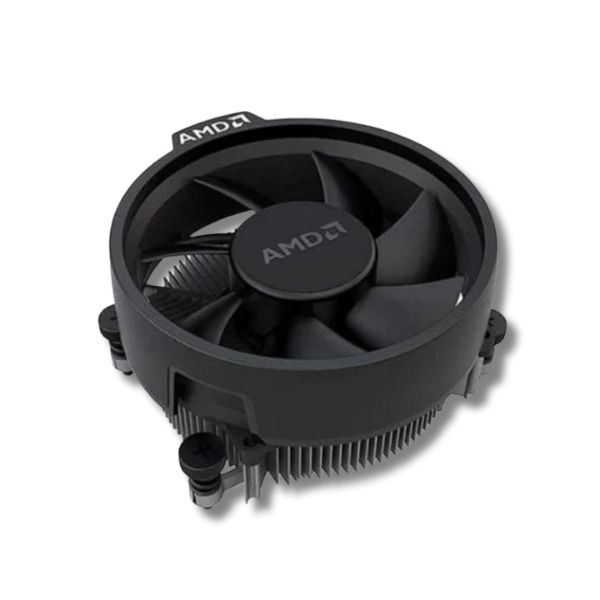

Thermal Solution (PIB)	AMD Wraith Stealth
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows 11 – 64-Bit Edition
	Windows 10 – 64-Bit Edition
	RHEL x86 64-Bit
	Ubuntu x86 64-Bit
	*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support	Yes
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 3.2 Gen 1 (5Gbps) Ports	0
Native USB 2.0 (480Mbps) Ports	1
Native SATA Ports	0
PCI Express® Version	PCIe® 5.0
Native PCIe® Lanes (Total/Usable)	28/24
Additional Usable PCIe Lanes from Motherboard	AMD X670E 12x Gen4
	AMD X670 12x Gen4
	AMD B650E 8x Gen4
	AMD B650 8x Gen4
NVMe Support	Boot, RAID0, RAID1, RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	128GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5200
	2x2R DDR5-5200
	4x1R DDR5-3600
	4x2R DDR5-3600
ECC Support	Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics	Yes
Graphics Model	AMD Radeon™ Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
GPU Base	400 MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes
Key Features
Supported Technologies	AMD EXPO™ Technology
Supported Technologies	AMD Ryzen™ Technologies
Warranty	3 Years
Note	Prices, features and specifications are subject to change without notice. Images are for Representation purposes only
