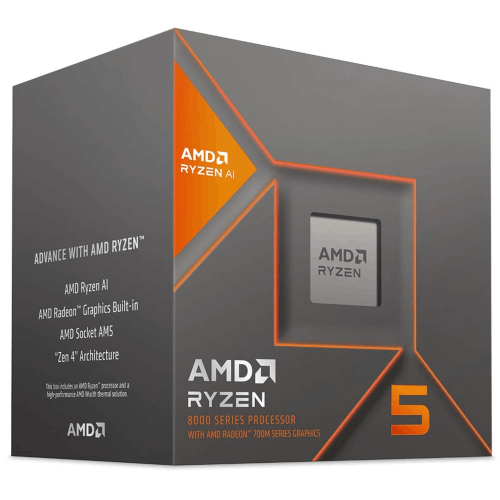

AMD Ryzen 5 8600G Processor with Radeon Graphics

17990.00 21000.00

Availability: In stock

Add to cart

Ask For Price

Description
Additional Information

AMD Ryzen 5 8600G Processor APU with Radeon 760M Graphics, 6 cores and 12 threads, up to 5GHz, AM5 Socket (100-100001237BOX)

The AMD Ryzen™ 5 8600G processor featuring 6 cores and 12 threads delivers powerful multitasking and gaming capabilities, built on the advanced Zen 4 architecture. It operates at a base clock of 4.3 GHz and can boost up to 5.0 GHz for demanding workloads. Designed for the AM5 socket, it includes 6MB of L2 cache and 16MB of L3 cache, enhancing performance and responsiveness. This processor has integrated AMD Radeon™ 760M graphics, offering solid visuals without needing a discrete GPU.

It supports DDR5-5200 memory, enabling faster data transfer and improved system responsiveness. Fully unlocked for overclocking, the CPU also features AMD Ryzen AI for advanced AI capabilities and comes bundled with the AMD Wraith Stealth cooler for efficient thermal management.

Specification

General Specifications
Name	AMD Ryzen™ 5 8600G
Family	Ryzen
Series	Ryzen 8000 Series
Form Factor	Desktops
Former Codename	Phoenix
Architecture	Zen 4
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 5 GHz
Base Clock	4.3 GHz
L2 Cache	6 MB
L3 Cache	16 MB
Default TDP	65W
Processor Technology for CPU Cores	TSMC 4nm FinFET
CPU Compute Die (CCD) Size	178mm²
Package Die Count	1
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
CPU Socket	AM5
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology	Precision Boost 2
Thermal Solution (PIB)	AMD Wraith Stealth
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax)	95°C
Launch Date	1/31/2024
*OS Support	Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 4 (40Gbps)	2
Native USB 3.2 Gen 2 (10Gbps)	2
Native USB 2.0 (480Mbps)	1
PCI Express® Version	PCIe® 4.0
Native PCIe® Lanes (Total/Usable)	20, 16
NVMe Support	Boot , RAID0 , RAID1
System Memory Type	DDR5
Memory Channels	2
Max. Memory	256 GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600
Graphics Capabilities
Graphics Model	AMD Radeon™ 760M
Graphics Core Count	8
Graphics Frequency	2800 MHz
DirectX® Version	12
DisplayPort™ Version	2.1
DisplayPort Extensions	Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR)	7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)	7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version	2.1
USB Type-C® DisplayPort™ Alternate Mode	Yes
Max Displays	4
AMD FreeSync™	Yes
Wireless Display	Miracast
Max Video Encode Bandwidth (SDR)	1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
Max Video Decode Bandwidth	1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory	Available
AI Engine Capabilities
Brand Name	AMD Ryzen™ AI
AMD Ryzen™ AI	Available
Performance	Up to 16 TOPS
Product IDs
Product ID Boxed	100-100001237BOX
Product ID Tray	100-000001237
Key Features
AMD Enhanced Virus Protection (NX bit)	Yes
Warranty	3 Years
Note	* Features, Price, Specifications are subject to change without notice. * Images are for Representation purposes only
